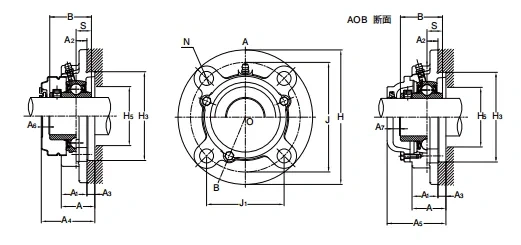

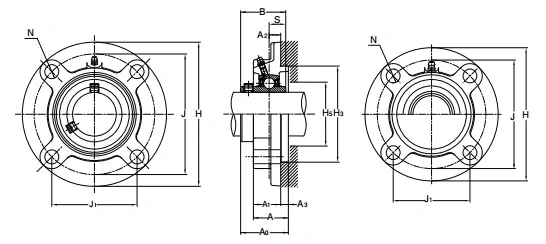

| 鋳鉄製突起フランジ UCFC形型番仕様表 | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 軸径 (mm) |
ユニット型式 | H (mm) |
A₁ (mm) |
J (mm) |
J₁ (mm) |
N (mm) |
A₂ (mm) |
A₃ (mm) |
A (mm) |
H₅(最小) (mm) |
H₃ (mm) |
A₀ (mm) |
B (mm) |
S (mm) |
A₅ (mm) |
A₇ (mm) |
取り付けボルト型式 | ベアリング型号 | ラジアルきほんていかく どうかじゅう Cr (kN) |
ラジアルきほんていかく せいかじゅう Cor (kN) |
標準ベアリング座型号 | 鋳鉄製シュラウド付きユニット型式 | 標準型質量 (kg) |
鋳鉄製シュラウド付き質量 (kg) |
| 70 | UCFCX14 | 222 | 36 | 190 | 134.3 | 19 | 14 | 20 | 56 | 93 | 164 | 78.5 | 77.8 | 33.3 | — | — | — | — | M16 | UCX14 | 66 | 48.2 | FCX14 | — |
| 70 | UCFC214 | 215 | 40 | 177 | 125.1 | 19 | 17 | 14 | 54 | 88 | 150 | 75.4 | 74.6 | 30.2 | — | 98 | — | 16 | M16 | UC214 | 62 | 44 | FC214 | — |
| 65 | UCFCX13 | 194 | 33 | 165 | 116.7 | 16 | 11 | 20 | 53 | 88 | 140 | 75.4 | 74.6 | 30.2 | — | — | — | — | M14 | UCX13 | 62 | 44 | FCX13 | — |
| 65 | UCFC213 | 205 | 36 | 170 | 120.2 | 19 | 16 | 14 | 50 | — | 145 | 69.7 | 65.1 | 25.4 | 81 | 89 | 10 | 13 | M16 | UC213 | 57.5 | 40 | FC213 | UCFC213C(E) |
| 60 | UCFCX12 | 194 | 33 | 165 | 116.7 | 16 | 11 | 20 | 53 | — | 140 | 70.7 | 65.1 | 25.4 | 83 | — | 11 | — | M14 | UCX12 | 57.5 | 40 | FCX12 | ※UCFCX12C(E) |
| 60 | UCFC212 | 195 | 36 | 160 | 113.1 | 19 | 17 | 12 | 48 | — | 135 | 68.7 | 65.1 | 25.4 | 80 | 86 | 10 | 11 | M16 | UC212 | 52.5 | 36.1 | FC212 | UCFC212C(E) |
| 55 | UCFCX11 | 180 | 26 | 152 | 107.5 | 16 | 4 | 22 | 48 | 79 | 127 | 65.7 | 65.1 | 25.4 | 76 | — | 9 | — | M14 | UCX11 | 52.5 | 36.1 | FCX11 | ※UCFCX11C(E) |
| 55 | UCFC211 | 185 | 31 | 150 | 106.1 | 19 | 13 | 12 | 43 | 69 | 125 | 58.4 | 55.6 | 22.2 | 69 | 75 | 9 | 10 | M16 | UC211 | 43 | 29.4 | FC211 | UCFC211C(E) |
| 50 | UCFCX10 | 162 | 25 | 136 | 96.2 | 14 | 7 | 16 | 41 | 71 | 118 | 56.4 | 55.6 | 22.2 | 67 | — | 9 | — | M12 | UCX10 | 43 | 29.4 | FCX10 | ※UCFCX10C(E) |
| 50 | UCFC210 | 165 | 28 | 138 | 97.6 | 16 | 10 | 12 | 40 | — | 110 | 54.6 | 51.6 | 19 | 66 | 71 | 9 | 10 | M14 | UC210 | 35.5 | 23.2 | FC210 | UCFC210C(E) |
| 45 | UCFCX09 | 155 | 25 | 130 | 91.9 | 14 | 8 | 12 | 37 | 64 | 108 | 52.6 | 51.6 | 19 | 64 | — | 10 | — | M12 | UCX09 | 35.5 | 23.2 | FCX09 | ※UCFCX09C(E) |
| 45 | UCFC209 | 160 | 26 | 132 | 93.3 | 16 | 10 | 12 | 38 | — | 105 | 52.2 | 49.2 | 19 | 63 | 67 | 10 | 8 | M14 | UC209 | 33 | 20.5 | FC209 | UCFC209C(E) |
| 40 | UCFCX08 | 133 | 26 | 111 | 78.5 | 12 | 9 | 11 | 37 | 58 | 92 | 50.2 | 49.2 | 19 | 61 | — | 10 | — | M10 | UCX08 | 33 | 20.5 | FCX08 | ※UCFCX08C(E) |
| 40 | UCFC208 | 145 | 26 | 120 | 84.8 | 14 | 11 | 10 | 36 | 52 | 100 | 51.2 | 49.2 | 19 | 62 | 66 | 10 | 8 | M12 | UC208 | 29.3 | 17.9 | FC208 | UCFC208C(E) |
| 35 | UCFCX07 | 133 | 26 | 111 | 78.5 | 12 | 9 | 11 | 37 | 54 | 92 | 50.2 | 49.2 | 19 | 59 | — | 7 | — | M10 | UCX07 | 29.3 | 17.9 | FCX07 | ※UCFCX07C(E) |
| 35 | UCFC207 | 135 | 26 | 110 | 77.8 | 14 | 11 | 8 | 34 | 48 | 90 | 44.4 | 42.9 | 17.5 | 54 | 59 | 8 | 8 | M12 | UC207 | 25.9 | 15.4 | FC207 | UCFC207C(E) |
| 30 | UCFCX06 | 127 | 22.5 | 105 | 74.2 | 12 | 8 | 9.5 | 32 | 50 | 85 | 42.9 | 42.9 | 17.5 | 53 | — | 8 | — | M10 | UCX06 | 25.9 | 15.4 | FCX06 | ※UCFCX06C(E) |
| 30 | UCFC206 | 125 | 23 | 100 | 70.7 | 12 | 10 | 8 | 31 | — | 80 | 40.2 | 38.1 | 15.9 | 51 | 55 | 9 | 8 | M10 | UC206 | 19.6 | 11.3 | FC206 | UCFC206C(E) |
| 25 | UCFCX05 | 111 | 24 | 92 | 65 | 10 | 6 | 6 | 30 | 43 | 76 | 38.2 | 38.1 | 15.9 | 51 | — | 9 | — | M8 | UCX05 | 19.6 | 11.3 | FCX05 | ※UCFCX05C(E) |
| 25 | UCFC205 | 115 | 21 | 90 | 63.6 | 12 | 10 | 6 | 27 | — | 70 | 35.8 | 34.1 | 14.3 | 47 | 51 | 9 | 9 | M10 | UC205 | 14 | 7.9 | FC205 | UCFC205C(E) |
