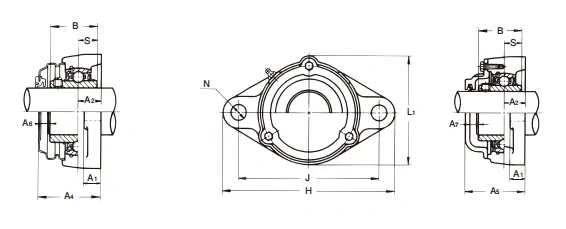

| 鋳鉄製長形フランジ UCFL 型型番仕様表 | ||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 軸径 (mm) |
ユニット型式 | H (mm) |
L (mm) |
L₁ (mm) |
A (mm) |
J (mm) |
N (mm) |
A₁ (mm) |
A₂ (mm) |
A₀ (mm) |
B (mm) |
S (mm) |
A₄ (mm) |
A₅ (mm) |
A₆ (mm) |
A₇ (mm) |
取り付けボルト型式 | ベアリング型号 | Cr (kN) |
Cor (kN) |
標準ベアリング座型号 | 鋼板製シュラウド付きユニット型式 | 鋳鉄製シュラウド付きユニット型式 | 標準型質量 (kg) |
鋼板製シュラウド付き質量 (kg) |
鋳鉄製シュラウド付き質量 (kg) |
| 140 | UCFL328 | 600 | 400 | 400 | 125 | 500 | 51 | 60 | 75 | 161 | 145 | 59 | — | 195 | — | 24 | M45 | UC328 | 255 | 246 | FL328 | — | ※CUCFL328C(CE) | 79.7 | — | 86.3 |
| 130 | UCFL326 | 550 | 360 | 360 | 115 | 460 | 47 | 50 | 65 | 146 | 135 | 54 | — | 180 | — | 24 | M42 | UC326 | 229 | 214.3 | FL326 | — | ※CUCFL326C(CE) | 57.5 | — | 64.4 |
| 120 | UCFL324 | 520 | 330 | 333 | 110 | 430 | 47 | 48 | 65 | 140 | 126 | 51 | — | 175 | — | 25 | M42 | UC324 | 207 | 184.8 | FL324 | — | ※CUCFL324C(CE) | 45.7 | — | 52.4 |
| 110 | UCFL322 | 470 | 300 | 305 | 96 | 390 | 44 | 42 | 60 | 131 | 117 | 46 | — | 165 | — | 26 | M39 | UC322 | 205 | 178.8 | FL322 | — | ※CUCFL322C(CE) | 33.1 | — | 38.7 |
| 105 | UCFL321 | 440 | 270 | 282 | 94 | 360 | 44 | 40 | 59 | 127 | 112 | 44 | — | 156 | — | 21 | M39 | UC321 | 183 | 153.1 | FL321 | — | ※CUCFL321C(CE) | 28.2 | — | 31.9 |
| 100 | UCFL320 | 440 | 270 | 277 | 94 | 360 | 44 | 40 | 59 | 125 | 108 | 42 | — | 154 | — | 21 | M39 | UC320 | 173 | 140.4 | FL320 | — | ※CUCFL320C(CE) | 26.5 | — | 30.6 |
| 95 | UCFL319 | 405 | 250 | 257 | 94 | 330 | 41 | 40 | 59 | 121 | 103 | 41 | — | 149 | — | 20 | M36 | UC319 | 153 | 118.4 | FL319 | — | ※CUCFL319C(CE) | 21.8 | — | 25.8 |
| 90 | UCFL318 | 385 | 235 | 245 | 76 | 315 | 38 | 36 | 44 | 100 | 96 | 40 | — | 128 | — | 20 | M33 | UC318 | 143 | 107.2 | FL318 | — | ※CUCFL318C(CE) | 17.1 | — | 20.7 |
| 90 | UCFL218 | 320 | 205 | 211 | 68 | 265 | 25 | 26 | 40 | 96.3 | 96 | 39.7 | — | 122 | — | 17 | M22 | UC218 | 95.5 | 71.4 | FL218 | — | CUCFL218C(CE) | 11.9 | — | 15 |
| 85 | UCFL317 | 370 | 220 | 232 | 74 | 300 | 38 | 32 | 44 | 100 | 96 | 40 | — | 126 | — | 18 | M33 | UC317 | 132 | 96.5 | FL317 | — | ※CUCFL317C(CE) | 14.5 | — | 18.2 |
| 85 | UCFL217 | 305 | 190 | 198 | 63 | 248 | 25 | 26 | 36 | 87.6 | 85.7 | 34.1 | — | 111 | — | 16 | M22 | UC217 | 83.5 | 61.8 | FL217 | — | CUCFL217C(CE) | 9.5 | — | 11.8 |
| 80 | UCFL316 | 355 | 210 | 218 | 68 | 285 | 38 | 32 | 38 | 90 | 86 | 34 | — | 115 | — | 17 | M33 | UC316 | 123 | 86.4 | FL316 | — | ※CUCFL316C(CE) | 12.6 | — | 15.5 |
| 80 | UCFL216 | 290 | 180 | 188 | 58 | 233 | 25 | 24 | 34 | 83.3 | 82.6 | 33.3 | — | 107 | — | 15 | M22 | UC216 | 72.5 | 53 | FL216 | — | CUCFL216C(CE) | 8 | — | 10.2 |
| 75 | UCFL315 | 320 | 195 | 206 | 66 | 260 | 35 | 30 | 39 | 89 | 82 | 32 | — | 114 | — | 17 | M30 | UC315 | 114 | 76.9 | FL315 | — | ※CUCFL315C(CE) | 10 | — | 12.2 |
| 75 | UCFL215 | 275 | 165 | 168 | 56 | 225 | 23 | 24 | 34 | 78.5 | 77.8 | 33.3 | — | 102 | — | 17 | M20 | UC215 | 66 | 48.2 | FL215 | — | CUCFL215C(CE) | 6.5 | — | 7.9 |
| 70 | UCFL314 | 315 | 185 | 196 | 61 | 250 | 35 | 28 | 36 | 81 | 78 | 33 | — | 106 | — | 17 | M30 | UC314 | 104 | 68 | FL314 | — | ※CUCFL314C(CE) | 9 | — | 11.8 |
| 70 | UCFL214 | 265 | 160 | 163 | 54 | 216 | 23 | 24 | 31 | 75.4 | 74.6 | 30.2 | — | 98 | — | 16 | M20 | UC214 | 62 | 44 | FL214 | — | CUCFL214C(CE) | 6 | — | 7.4 |
| 65 | UCFL313 | 295 | 175 | 186 | 58 | 240 | 31 | 25 | 33 | 78 | 75 | 30 | — | 103 | — | 17 | M27 | UC313 | 92.5 | 59.7 | FL313 | — | ※CUCFL313C(CE) | 7.4 | — | 9.4 |
| 65 | UCFL213 | 258 | 155 | 157 | 50 | 210 | 23 | 24 | 30 | 69.7 | 65.1 | 25.4 | 81 | 89 | 10 | 13 | M20 | UC213 | 57.5 | 40 | FL213 | UCFL213C(E) | CUCFL213C(CE) | 5.1 | 5.3 | 6.7 |
| 60 | UCFL312 | 270 | 160 | 164 | 56 | 212 | 31 | 22 | 33 | 78 | 71 | 26 | — | 98 | — | 14 | M27 | UC312 | 81.5 | 52 | FL312 | — | ※CUCFL312C(CE) | 6.2 | — | 7.3 |
